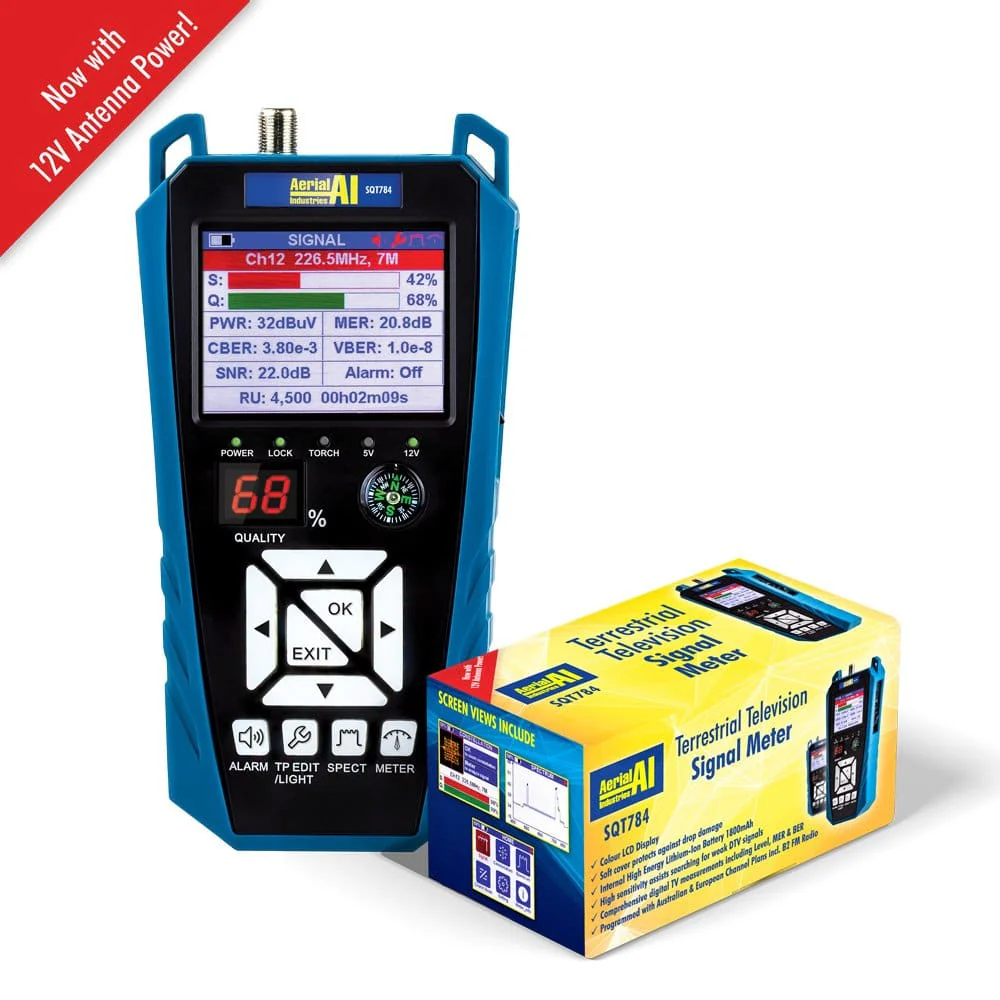

Terrestrial DTV Signal Meter SQT784

Terrestrial DTV Signal Meter with 12V Antenna Power

Achieve a better TV signal quality with the SQT784 Aerial Industries Terrestrial TV Signal Meter.

PRODUCT HIGHLIGHTS

• Colour LCD Display
• Soft Cover Protects Against Drop Damage
• Internal High Energy Lithium-Ion Battery 1800mAh
• High Sensitivity Assists Searching for Weak DTV Signals
• Comprehensive Digital TV Measurements including Level, MER and BER
• Programmed with Australian and European Channel Plans including B2 FM Radio

PRODUCT BENEFITS

• Expanded Channel Plans
• Spectrum Signal Displays
• Now Powers 12V Mast Amplifiers
• Instant Responses to Signal Changes
• Convenient LED Torch Light Integrated
• Audible Lock and Signal Quality Alarm
• Keypad Backlit Enables Use in Darkness
• Sensitive to Weak and Strong TV Signals
• Reads MER, BER and RU with Lock Timer
• Ready for DVB-T2, Exceptional with DVB-T
• Compact Handheld Shape that's Easy-to-Use
• Magnetic Compass Assists Identifying Direction
• Constellation Displays Locked Signals in XY-Plane Scatter Diagrams

SPECIFICATIONS

• Terrestrial Tuner & Demodulator
• FREQUENCY RANGE: 50MHz to 858MHz
• INPUT CONNECTOR: F Male for F Female - Female Adapter (included)
• SIGNAL LEVEL RANGE: <30 to 110dBμV
• ANTENNA LINE AMP POWER SUPPLY: 12V or 5V at up to 300mA Short Circuit Protected
• CHANNEL BANDWIDTH: 7MHz Default 8, 6 or 5 MHz Ready
